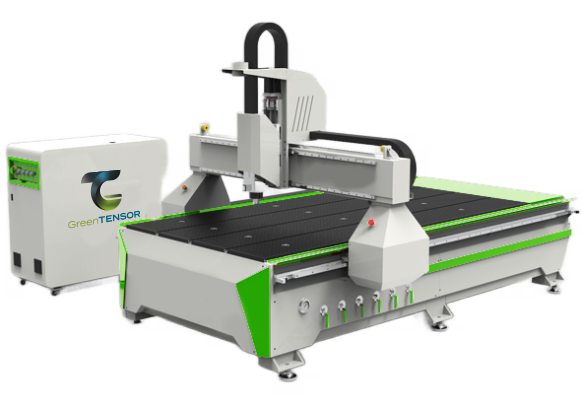

maKIM CNC Router Multi-heads

Multi-head CNC Router, meticulously designed for unparalleled precision and productivity. Engineered with a robust and rigid body, high-quality linear bearings, and powerful air-cooled brushless spindles, this machine guarantees low noise, strong cutting ability, and an extended operational lifetime. With the ability to work simultaneously with four spindles, our CNC router significantly boosts production efficiency.

I Agree with the terms and conditions

Description
Specifications

Detailed Description

The Multi-heads CNC Router embodies the pinnacle of precision and productivity, featuring a robust and rigid body for enduring strength. With high-quality Rail Linear Bearings ensuring smooth and accurate movement, this machine stands as a testament to durability and reliability. Operable with four spindles simultaneously, it redefines efficiency in production, delivering unparalleled results. Crafted by a German company, it integrates the precision of German engineering, minimizing failure rates and setting the standard for quality. The innovative inclusion of a vacuum working table, powerful dust cleaner, 4*6KW spindles, and German PEK silent guide rails further accentuates its versatility, making it an exceptional solution for industries demanding both precision and efficiency.

Machine Specification:

Robust and rigid body construction.

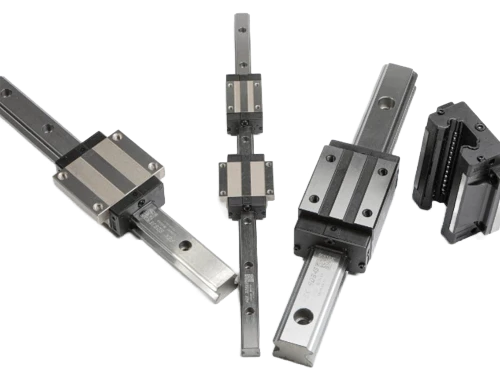

High-quality Rail Linear Bearings for smooth and accurate movement.
Simultaneous operation with four spindles for enhanced efficiency.
Designed by a German company for precision and reliability.
Innovative features including a vacuum working table and powerful dust cleaner.
4x6KW spindles for versatile applications.
Integration of German PEK silent guide rails for stability and longevity.
Zero-second switching between spindles for optimal tool change time.

Applications

Woodworking Industry:

Three-dimensional wave plate processing.
Crafting wooden doors and screens.
Auxiliary processing for various furniture items.

Advertising Industry

Production of advertising signs and logos.
Acrylic cutting and plastic molding.
Processing a variety of advertising materials.

Other Industries:

Shadow carving and relief for artistic applications.
Engraving marble, plastic plates, and wood for non-metallic molds.
Widely used in the Gifts & Crafts industry for intricate designs and patterns.

Features

Model	GT-WCN-M4-1325
X, Y Working size	1300*2500
Z feed Height	200mm
Table Surface	Vacuum table (T-slot table is optional)
X, Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Bearings
Z Structure>	Hiwin Linear Square Guide Rail and Ball Screw
Max. Power Consumption	(Without spindle) 2.0Kw
Max. Rapid Travel Rate	33000mm/min
Max. Working Speed	25000mm/min
Spindle Power	4.5/ 5.5/ 6kw x4
Tool sensor	Without
Spindle Speed	0-24000RPM
Drive Motors	Stepper motor 450B and Leadshine 860H driver
Working Voltage:	AC380V/50/60Hz,3PH (Option: 220V)
Command Language	G code
Control System	DSP A11 control system
X,Y,Z repositioning Accuracy	±0.01mm
X,Y Resolution	<0.01mm
Software Compatibility	Type3/UcancameV9 software, (Option: Artcam software)
Running Temperature	0 degree - 45 degree
Relative Humidity	30% - 75%
